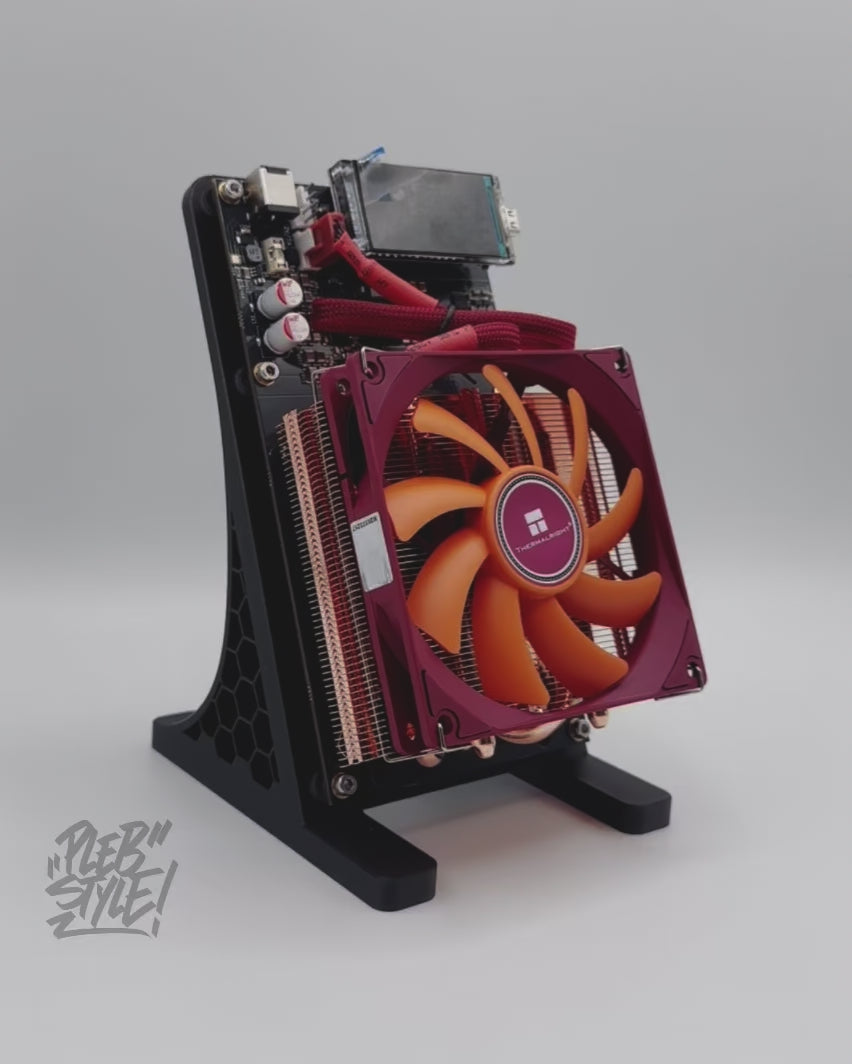

PRE-ORDER: NerdQaxe++ “OC Edition” – Copper Cooler, Dual Fans, incl. 150W PSU & Stand

Pre-order – reserve your item now!
This product is currently available for pre-order. Estimated delivery is scheduled for early to mid-July.
Please note: The order confirmation will include an automatically generated delivery date that does not reflect the actual shipping timeframe.

🚀 The NerdQaxe++ “OC Edition” delivers maximum hashrate for your solo mining setup – featuring a full copper cooler, additional fan, and high-power PSU. Thanks to improved cooling and stronger power delivery, 6TH/s and beyond is possible – stable, efficient, and plug & play.

Highlights:

• ⚡ 4× BM1370 (S21 Pro/Plus) chips – 6TH/s and beyond possible (depending on OC and firmware)
• 🧊 Thermalright AXP90-X47 Full Copper – high-performance cooler for continuous & overclocked operation
• 🔁 Additional 90mm rear fan to cool the voltage regulators (Vregs)
• 🟫 2 rear copper heatsinks for extra cooling – directly airflowed by the fan
• 🧠 Open source hardware & firmware
• 🖥️ LilyGo T-Display-S3 with full-color LCD and integrated ESP32
• 🔌 LEICKE 150W PSU (12V / 12.5A) incl. adapter (5.5×2.5mm → 2.1mm)
• 🧱 Comes with 3D-printed stand and rear fan bracket:
  Stand & Fan Add-On

Cooling:

The OC Edition features the AXP90-X47 Full Copper cooler – made entirely of copper for maximum thermal performance. It’s paired with an additional 90mm fan on the rear that actively cools the voltage regulators (Vregs). Additionally, two rear copper heatsinks are mounted and perfectly positioned within the airflow. All cooling elements come pre-installed – ready for overclocking straight out of the box.

Differences to the standard version:

• ✅ AXP90-X47 Full Copper cooler (instead of aluminum)
• ✅ Rear 90mm fan for Vreg cooling
• ✅ 2 additional rear copper heatsinks
• ✅ 3D-printed rear fan mount included
• ✅ 150W PSU for overclocking headroom
• 🚀 6TH/s and beyond possible (depends on tuning and firmware)

Technical data:

• ASICs: 4× BM1370 (Antminer S21 Pro/Plus generation)
• Hashrate: 4.8TH/s (stock) – 6TH/s+ with overclocking
• Power draw: approx. 80–120W (depending on tuning and cooling)
• Controller: ESP32 S3 with full-color LCD (T-Display-S3)
• Interfaces: USB-C (debug), WiFi, GPIO
• Power supply: LEICKE 150W PSU (12V / 12.5A, EU plug) incl. adapter (5.5×2.5mm → 2.1mm)

Included in delivery:

• NerdQaxe++ “OC Edition”
• Thermalright AXP90-X47 Full Copper cooler (pre-installed)
• 90mm rear fan (pre-installed)
• 2 copper heatsinks (rear-mounted)
• 3D-printed stand (PLA)
• 3D-printed fan add-on (PLA)
• includes heat-set inserts and all required screws for mounting
• LEICKE 150W PSU (12V / 12.5A) incl. adapter
