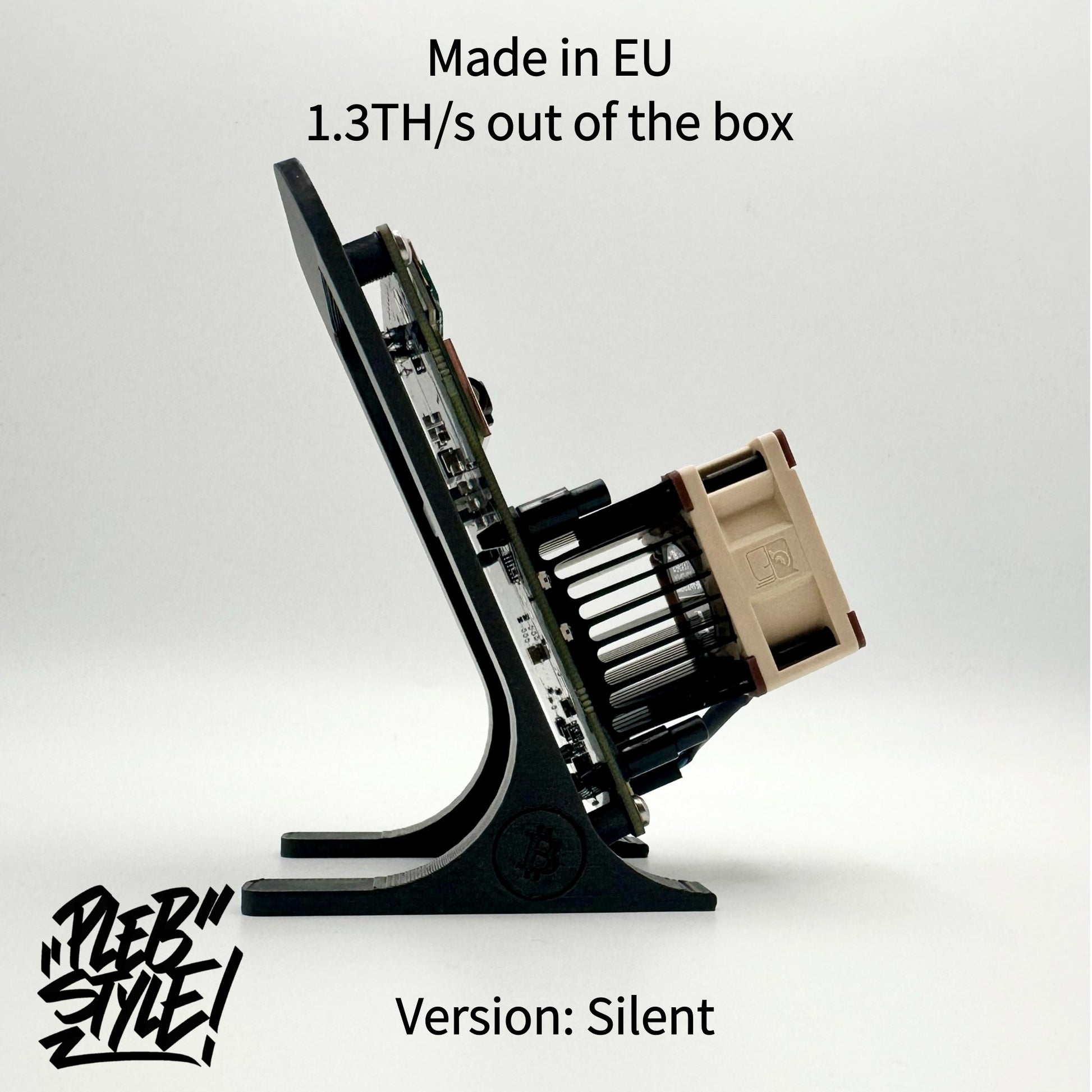

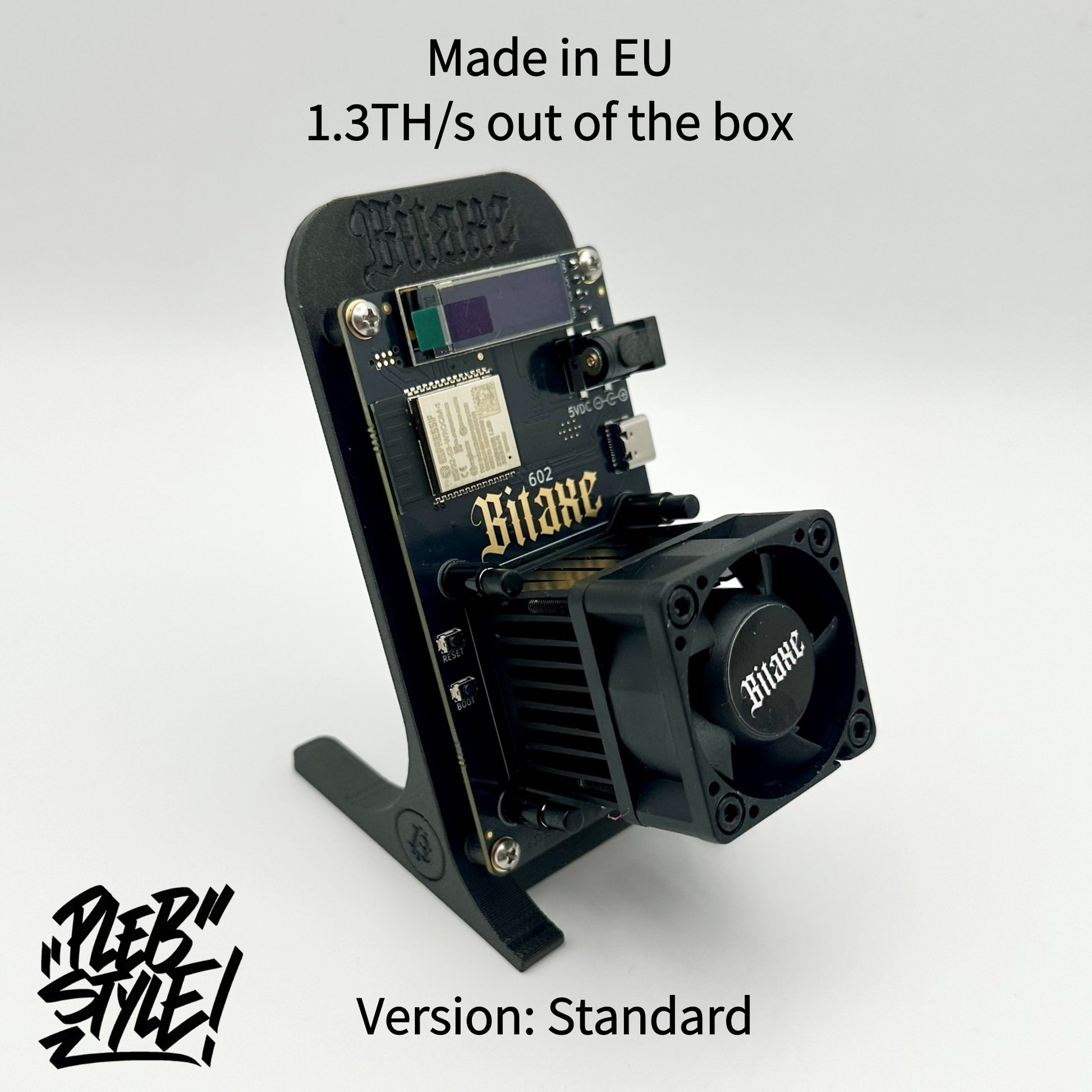

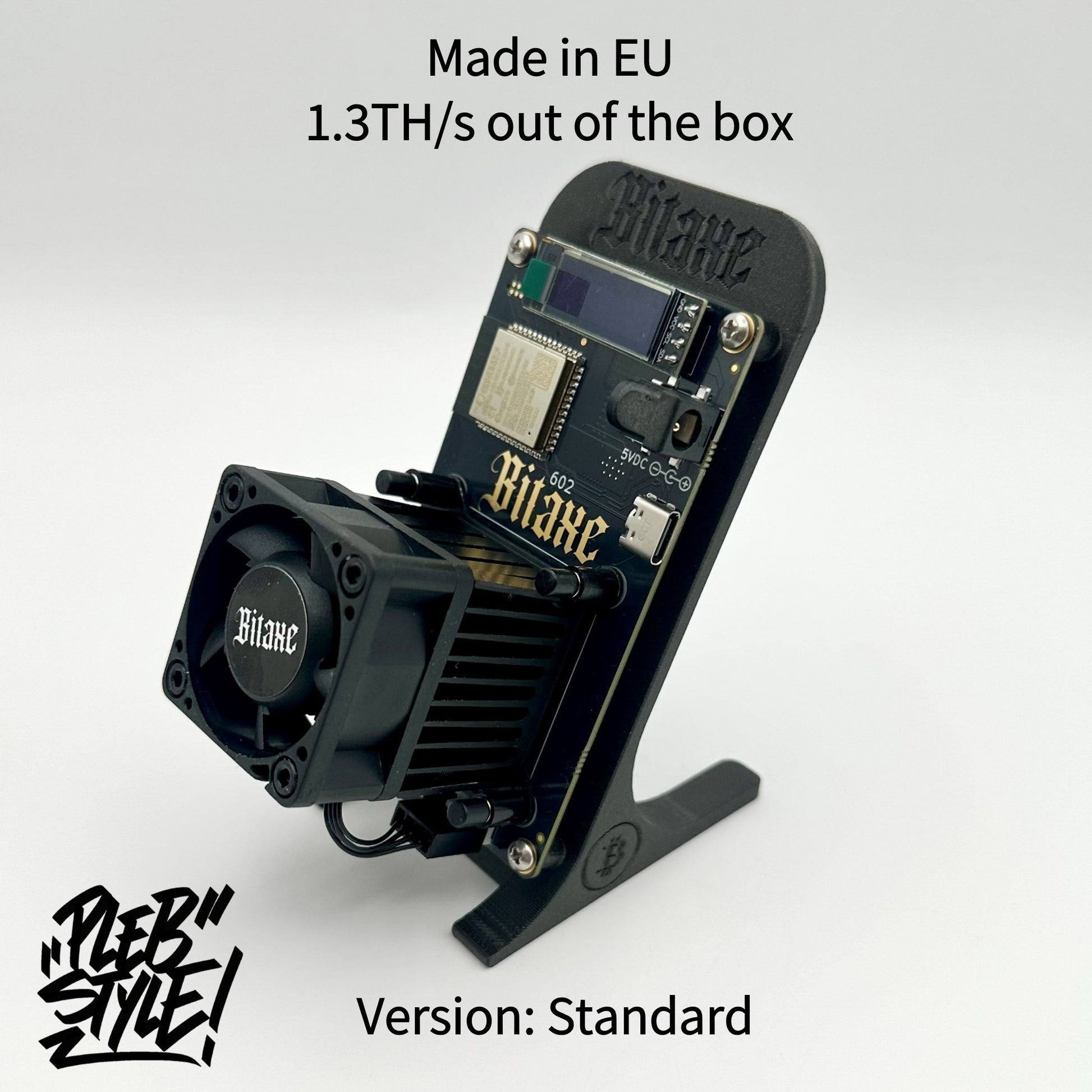

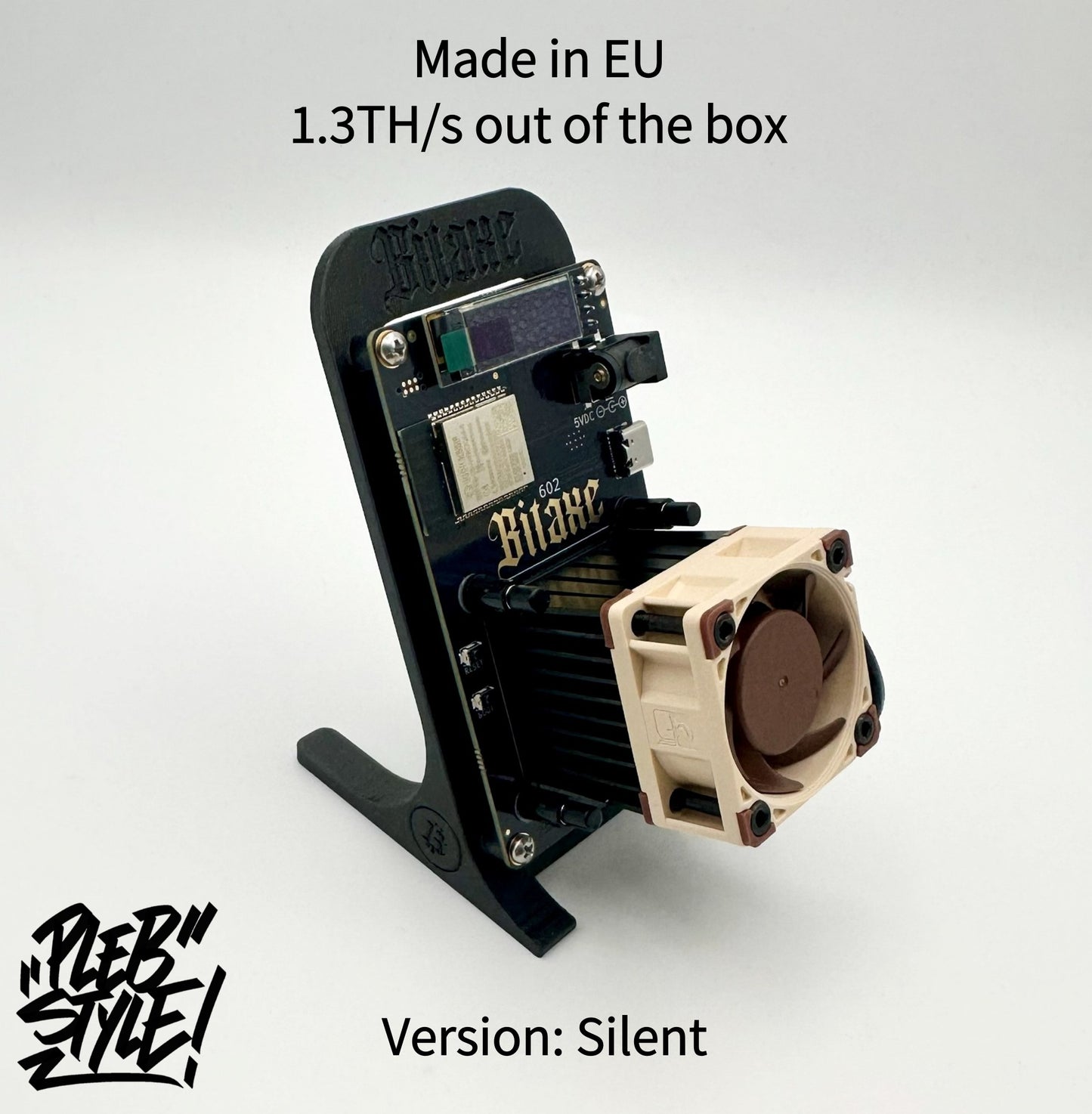

Bitaxe Gamma – Black Friday Edition (1.3 TH/s, incl. Power Supply & Stand)

Black Friday Edition – only while supplies last.

The new Bitaxe GAMMA v602 – Made in EU sets a new benchmark for home mining. The device comes pre-configured at 1.3 TH/s and is ready to run within minutes.

1. Performance

• Hashrate: Pre-configured at 1.3 TH/s
• ASIC Chip: BM1370 (used in modern high-performance miners)
• Power Consumption: approx. 21 W at 1.3 TH/s

2. Connectivity

• Wi-Fi: Integrated ESP32-S3-WROOM-1 module

3. Setup – ready in 2 minutes

• Connect to the miner’s Wi-Fi (SSID shown on the display)
• In the web interface, connect the Bitaxe to your home Wi-Fi
• Enter a valid Bitcoin wallet address
• After reboot, mining starts automatically

4. Hardware

• Display: 0.91" SSD1306 OLED (I2C) for real-time monitoring

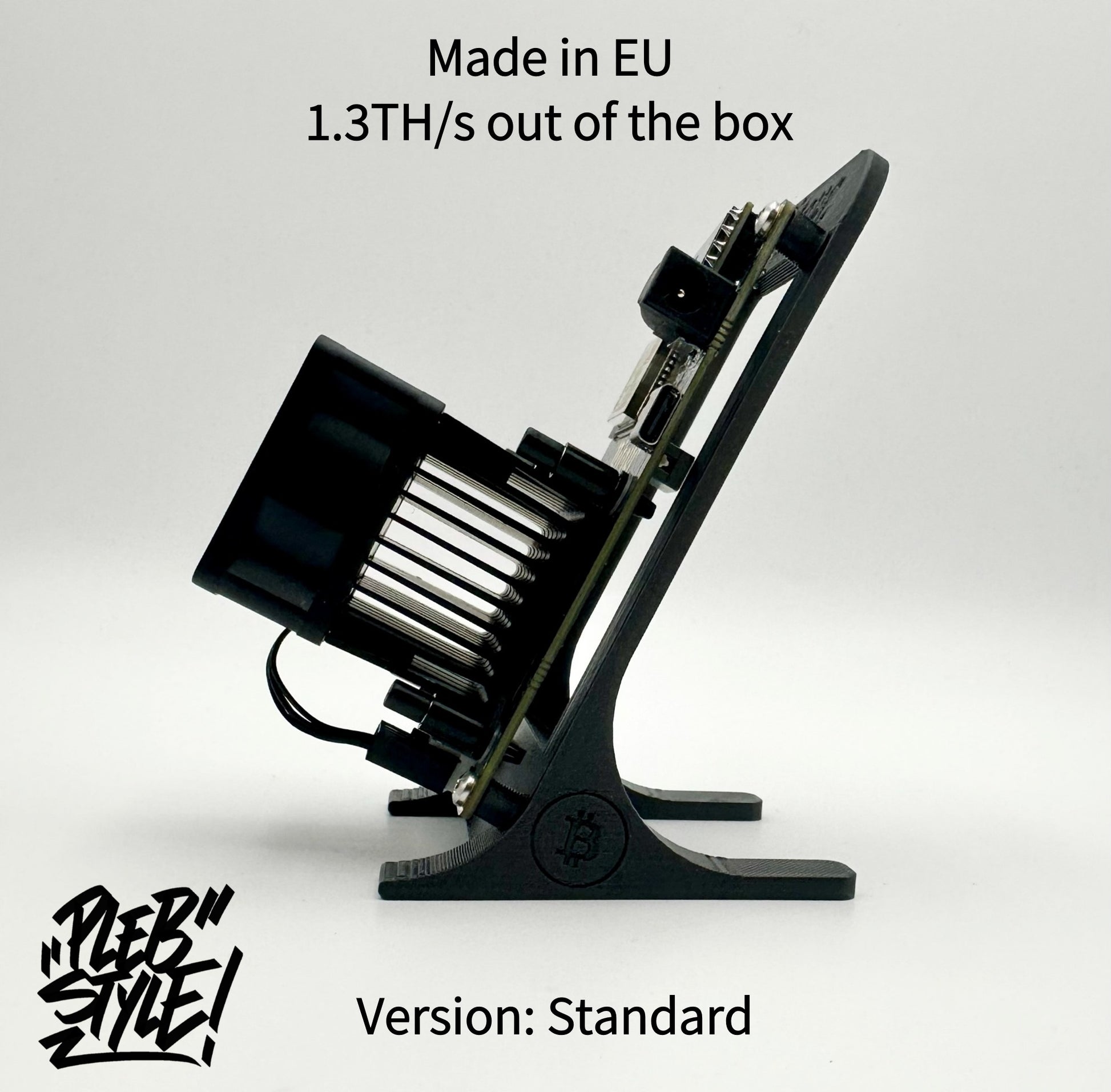

• Cooling: Large optimized heatsink ensures stable operation at 1.3 TH/s

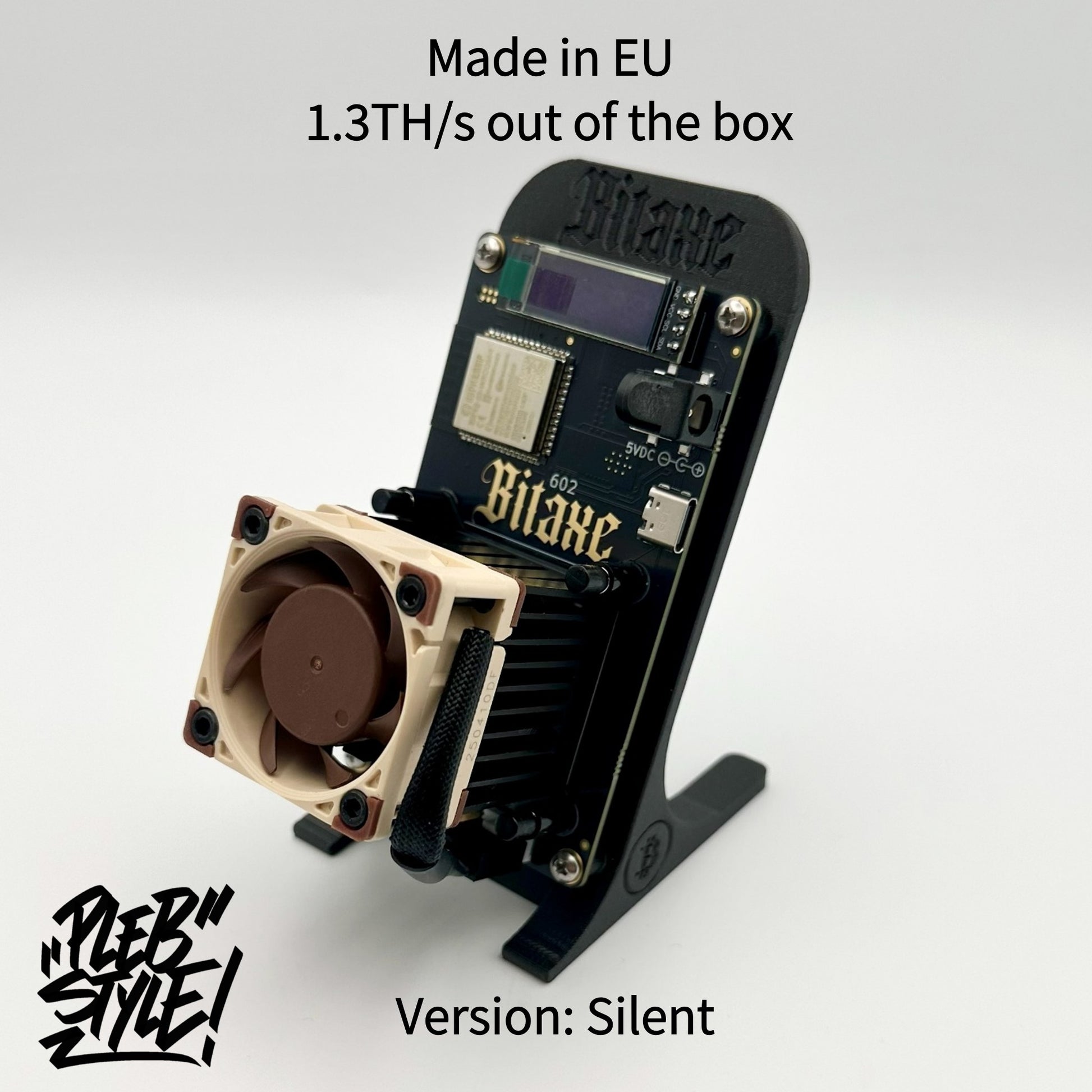

• Fan: Choice of standard 5V fan or silent version with premium Noctua fan

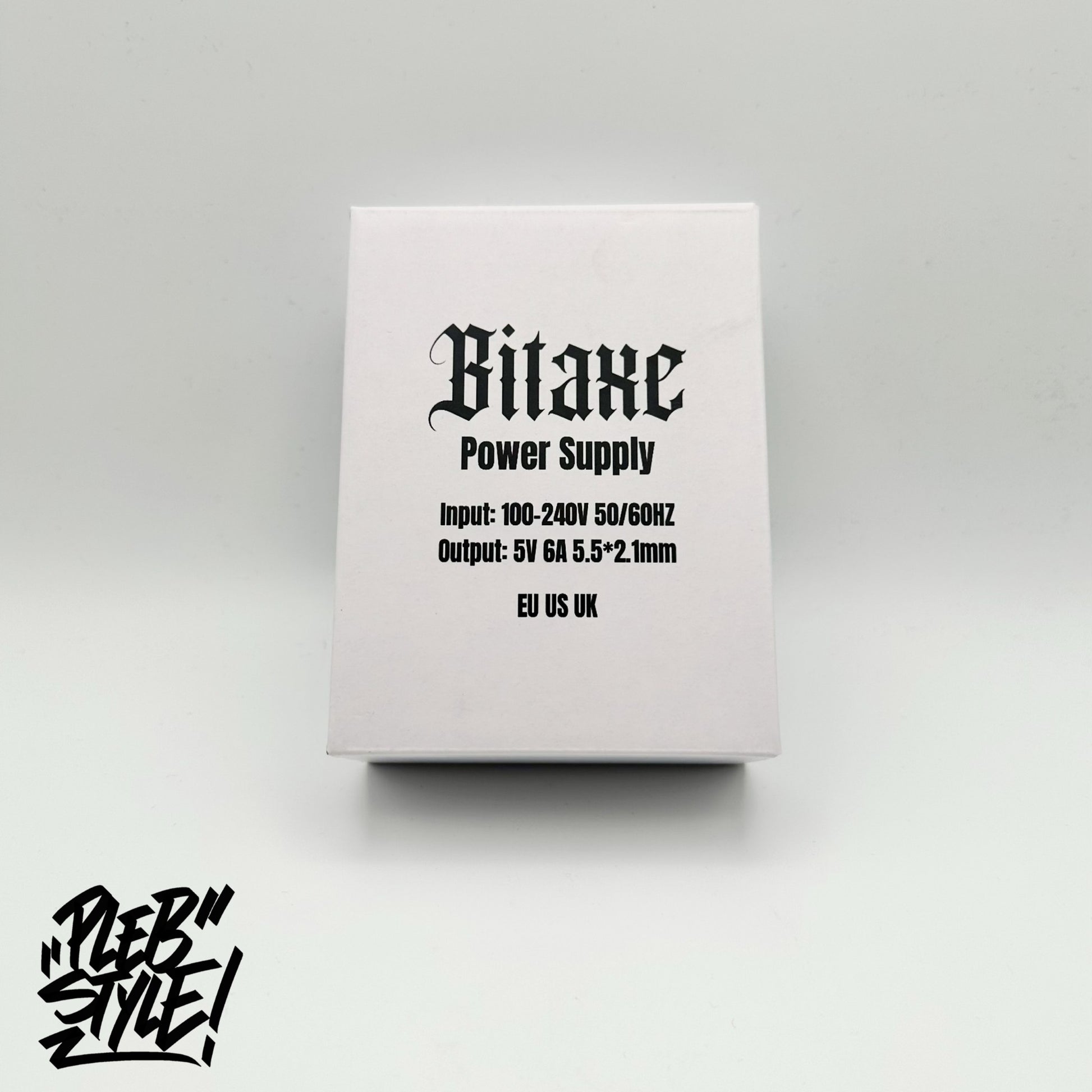

• Power Supply: 30 W PSU included (EU, UK, US)
• Connections: Supports 4-pin and JST-mini fans (dual connector)
• Note: Both the standard and the Noctua fan come with a short cable, optimized for the compact Bitaxe layout.

5. Open Source & Community

• Fully open hardware and firmware design
• Easily extendable and modifiable by the community

6. Additional Information

• Stand: Includes the stand from this Thingiverse model .
• OSMU: $5 per miner donated to Open Source Miners United
• Optional Upgrades:
  ICE Tower Upgrade Kit
  Low-Profile ICE Tower PLUS (Plebstyle Edition)

7. Disclaimer

Actual performance depends on ASIC frequency and cooling.
Overclocking without sufficient cooling may damage the device.
No warranty is provided for damage caused by overclocking or by future firmware versions beyond the shipping state.

Setup Video (approx. 2 minutes):
https://www.youtube.com/watch?v=RYQPKIlAxCU

More information:
https://bitaxe.org/
